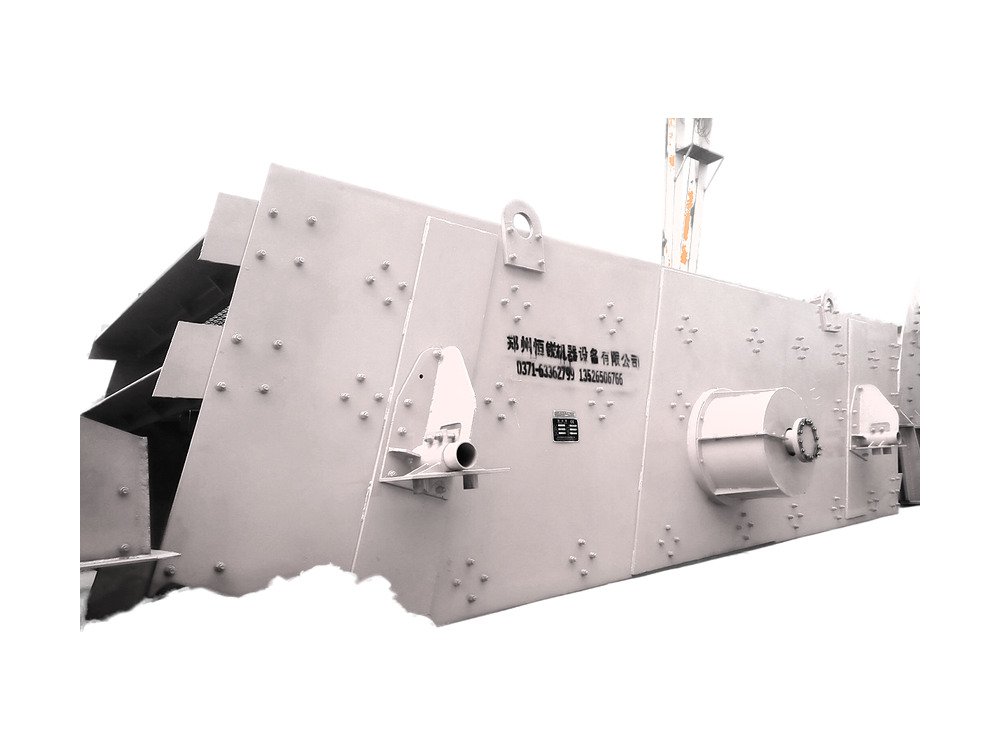

YK Series Circular Vibrating Screen
YK Series
A multi-layer, high-efficiency screen whose box moves in a circular path. A tube-body eccentric-shaft exciter with adjustable amplitude gives a long material travel line and a wide choice of grading specifications. Designed for quarry screening and also used for product classification in coal preparation, mineral processing, building materials, power and chemical industries.
- 1/2/3/4 deck options from a single model range
- Sieve areas from 4.2 to 14.4 m² across 23 models
- Capacities from 34 to 810 m³/h
Key features
- 1/2/3/4 deck options from a single model range
- Sieve areas from 4.2 to 14.4 m² across 23 models
- Capacities from 34 to 810 m³/h
- Vibrating frequency 730–970 r/min with 7–8 mm double amplitude
- Reliable structure, strong excitation and high screening efficiency
- Low noise, sturdy and easy to maintain
Specifications
YK Series Circular Vibrating Screen
| Model | Layers | Sieve area (m²) | Mesh size (mm) | Max feed size (mm) | Capacity (m³/h) | Vibrating frequency (r/min) | Double amplitude (mm) | Motor power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|---|---|
| YK1235 | 2 | 4.2 | 5–50 | 200 | 35–180 | 920 | 7 | 5.5 | 3.6 |
| 2YK1235 | 2 | 4.2 | 5–50 | 200 | 35–206 | 915 | 7 | 11 | 4.3 |
| 3YK1235 | 3 | 4.2 | 5–50 | 200 | 35–206 | 915 | 8 | 11 | 4.5 |
| YK1535 | 1 | 5.25 | 5–50 | 200 | 34–200 | 970 | 8 | 11 | 3.4 |
| 3YK1535 | 3 | 5.25 | 5–50 | 400 | 34–200 | 970 | 8 | 15 | 5.7 |
| 3YK1548 | 3 | 7.2 | 5–50 | 400 | 47–275 | 970 | 7 | 15 | 6.1 |
| 4YK1548 | 4 | 7.2 | 5–100 | 200 | 47–275 | 970 | 8 | 18.5 | 7.1 |
| YK1860 | 1 | 10.8 | 5–100 | 400 | 56–330 | 730 | 8 | 15 | 7.1 |
| 2YK1860 | 2 | 10.8 | 5–100 | 400 | 56–330 | 730 | 8 | 15 | 6.2 |
| 3YK1860 | 3 | 10.8 | 5–100 | 400 | 56–330 | 730 | 7 | 22 | 7 |
| 2YK1854 | 2 | 9.72 | 5–100 | 400 | 63–586 | 730 | 7 | 22 | 7.6 |
| 3YK1854 | 3 | 9.72 | 5–100 | 400 | 63–586 | 730 | 7 | 22 | 8.6 |
| 4YK1854 | 4 | 9.72 | 5–150 | 200 | 63–586 | 740 | 8 | 30 | 10.5 |
| YK2060 | 1 | 12 | 5–100 | 400 | 73–683 | 740 | 8 | 18.5 | 5.3 |
| 2YK2060 | 2 | 12 | 5–100 | 400 | 73–683 | 740 | 8 | 22 | 8 |
| 3YK2060 | 3 | 12 | 5–100 | 400 | 73–683 | 740 | 8 | 22 | 10 |
| 2YK2160 | 2 | 12.6 | 5–100 | 400 | 81–720 | 740 | 8 | 30 | 11 |
| 3YK2160 | 3 | 12.6 | 5–100 | 400 | 81–720 | 740 | 7 | 30 | 12.8 |
| 4YK2160 | 4 | 12.6 | 5–100 | 450 | 66–720 | 740 | 8 | 45 | 15.1 |
| YK2460 | 1 | 14.4 | 5–150 | 400 | 150–810 | 740 | 8 | 22 | 6.2 |
| 2YK2460 | 2 | 14.4 | 5–150 | 400 | 150–810 | 740 | 8 | 30 | 8 |
| 3YK2460 | 3 | 14.4 | 5–150 | 200 | 450–650 | 740 | 8 | 37 | 10.8 |
| 4YK2460 | 4 | 14.4 | 5–150 | 200 | 450–650 | 740 | 8 | 45 | 12.8 |
Selection note：The table above lists standard YK series parameters. The 2/3/4 prefix indicates the number of decks. Capacity varies with bulk density, moisture content and mesh size. Please confirm deck count with our technical team when selecting.
Applications
- Stone screening and grading in quarries
- Coal grading in coal preparation plants
- Ore screening in mineral processing plants
- Aggregate grading in building materials
- Material classification in power and chemical plants
Options & configuration
- Deck options: 1 / 2 / 3 / 4
- Mesh size 5–50 / 5–100 / 5–150 mm depending on model
- Screen media options: manganese steel / polyurethane / stainless steel
- Motor power 5.5–45 kW matched to each model
- Optional enclosed dust cover
- Optional mobile chassis
Need help choosing a model?
Tell us the material and the target capacity — we will recommend the model and the supporting equipment that fit.
