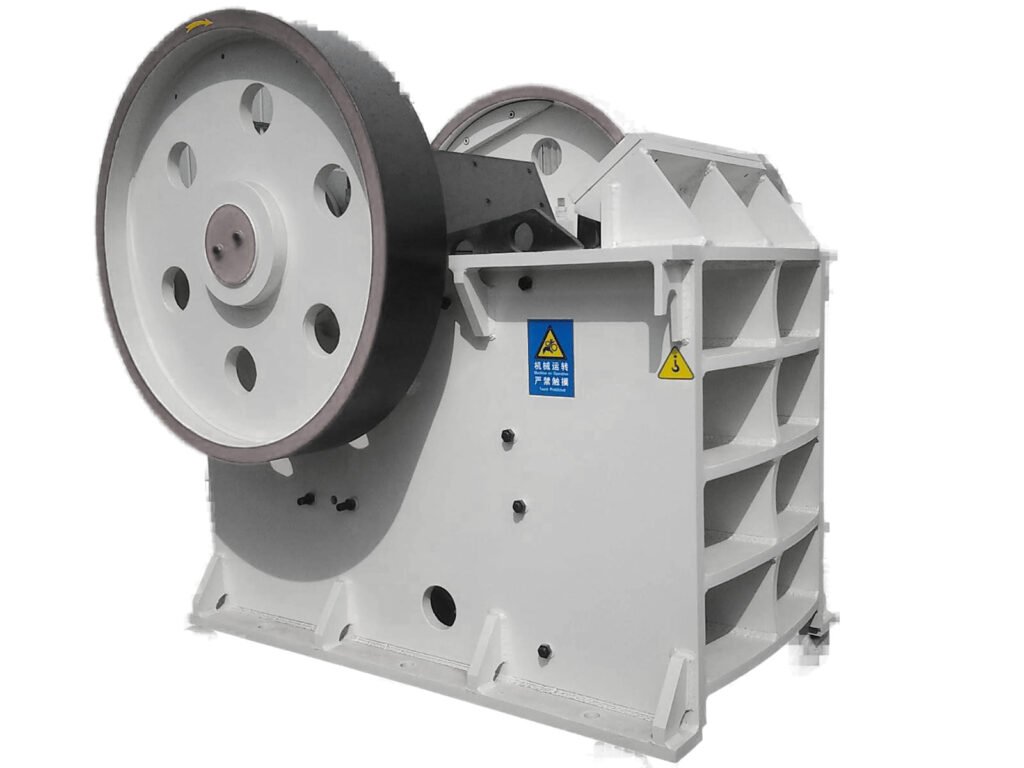

Jaw Crusher
PE Series / PEV Series / PEX Series
Suitable for primary and secondary crushing of ores and rocks with compressive strength up to 320 MPa. Three series available — PE for primary crushing, PEV European type and PEX for fine crushing — covering capacities from 5 to 1100 t/h.
- High reduction ratio: large lumps can be crushed to the required size in a single pass
- Deep crushing chamber design delivers higher feed capacity and output
- Jaw plates made of high-manganese steel for good wear resistance and long replacement cycles
Key features
- High reduction ratio: large lumps can be crushed to the required size in a single pass
- Deep crushing chamber design delivers higher feed capacity and output
- Jaw plates made of high-manganese steel for good wear resistance and long replacement cycles
- Simple, compact structure with low failure rate and low routine maintenance cost
- Wide discharge setting range to meet different finished-product size requirements
- Complete range for primary, secondary and fine crushing, easy to integrate into a production line
Specifications
PE Series Jaw Crusher (Primary Crushing)
| Model | Feed Opening (mm) | Max. Feed Size (mm) | Discharge Setting Range (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| PE250×400 | 250×400 | 210 | 25-60 | 5-20 | 15 | 1215x1240x1210 |
| PE400×600 | 400×600 | 350 | 40-90 | 15-60 | 30 | 1700x1750x1680 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-130 | 45 | 2150x1900x1950 |
| PE600×900 | 600×900 | 500 | 60-125 | 90-180 | 55 | 2500x2010x2350 |
| PE750×1060 | 750×1060 | 630 | 60-150 | 110-380 | 110 | 2630x2310x3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 132 | 3720x2850x3250 |
| PE1000×1200 | 1000×1200 | 850 | 200-300 | 280-560 | 160 | 3820x2850x3250 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 4590×3342×3553 |
| PE1500×1800 | 1500×1800 | 1200 | 210-360 | 520-1100 | 280 | 5100x4700x4300 |
PEV Series European Jaw Crusher
| Model | Max. Feed Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Main Shaft Speed (r/min) | Motor Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| PEV400×600 | 380 | 40-80 | 20-65 | 270 | 30 | 7.02 |
| PEV500×750 | 450 | 50-100 | 45-107 | 250 | 55 | 10 |
| PEV600×900 | 500 | 60-165 | 50-160 | 235 | 75 | 17 |
| PEV750×1100 | 630 | 80-175 | 110-320 | 225 | 110 | 23.1 |
| PEV860×1100 | 700 | 70-200 | 190-336 | 210 | 132 | 26.5 |
| PEV900×1200 | 750 | 100-220 | 220-380 | 200 | 132 | 42.5 |
PEX Series Fine Jaw Crusher
| Model | Feed Opening (mm) | Max. Feed Size (mm) | Discharge Setting Range (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| PEX150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 1310x1118x1145 |
| PEX250×750 | 250×750 | 210 | 15-50 | 15-30 | 22 | 1440x1751x1515 |
| PEX250×1000 | 250×1000 | 210 | 15-60 | 15-52 | 30 | 1730x1950x1400 |
| PEX250×1200 | 250×1200 | 210 | 15-60 | 25-80 | 37 | 1730x2150x1400 |
| PEX300×1300 | 300×1300 | 250 | 25-60 | 30-105 | 55 | 2000x2320x1730 |
Selection note：The tables above list standard parameters for each series. Selection should take material hardness, maximum feed size, target capacity and required product size into account. For an accurate recommendation, please provide your material type and working conditions and we will suggest the right model and supporting equipment.
Applications
- Primary crushing of metallic ores: iron ore, copper ore, gold ore, lead-zinc ore and other mine ores
- Crushing and sand making for building materials: limestone, granite, basalt, river pebble
- Metallurgy: crushing of metallurgical slag and furnace slag
- Chemical industry: primary crushing of various chemical raw materials
- Aggregate production for infrastructure, highway, railway and water conservancy projects
Options & configuration
- Jaw plate material options: high-manganese steel / alloy steel / extra-hard wear-resistant material
- Motor options: standard domestic motor / variable-frequency drive motor
- Supporting equipment: vibrating feeder, vibrating screen, belt conveyor
- Optional mobile chassis to form a mobile crushing station
- Optional centralized lubrication system and automatic control system
