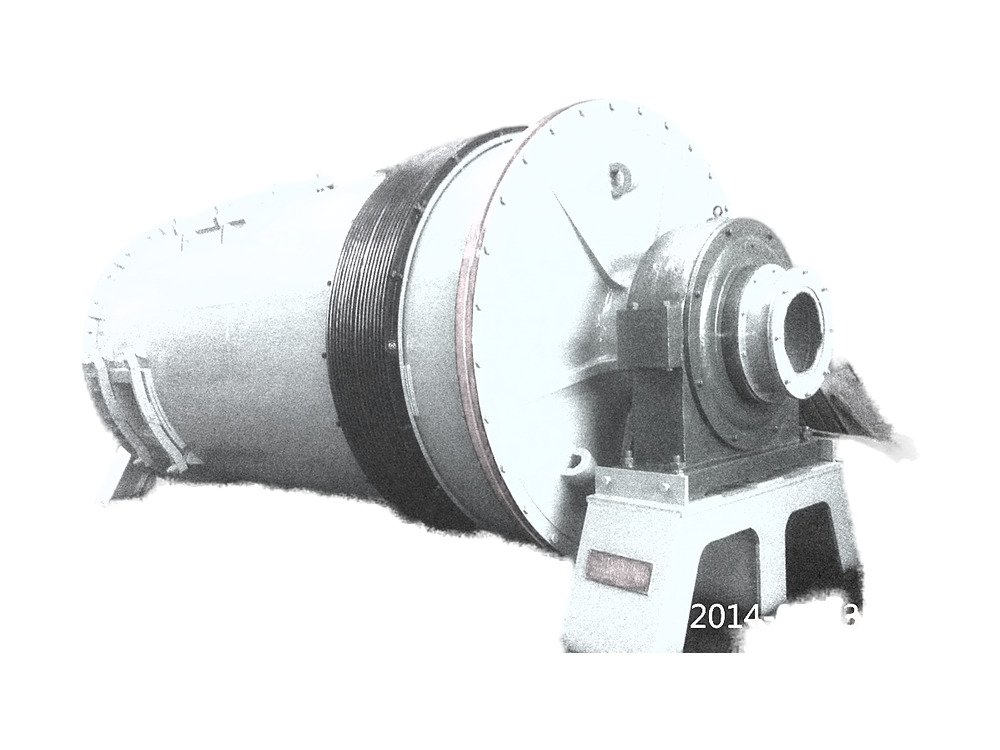

Ceramic Ball Mill
TC Series Ceramic Ball Mill
A ball mill lined and charged with alumina ceramic, quartz or silex instead of steel — so the product never touches iron. Used for ceramic bodies, quartz, feldspar, kaolin, pigments and electronic materials where iron contamination is not acceptable. Fineness is controlled by grinding time, and the mill runs either dry or wet.
- Fully ceramic lining and media, no iron pickup — for materials with tight whiteness and purity specs
- Liner options: alumina ceramic, quartz, silex or rubber, matched to material hardness and purity
- Batch operation — fineness set by grinding time, one batch at a time, easy to change material
Key features
- Fully ceramic lining and media, no iron pickup — for materials with tight whiteness and purity specs
- Liner options: alumina ceramic, quartz, silex or rubber, matched to material hardness and purity
- Batch operation — fineness set by grinding time, one batch at a time, easy to change material
- Dry or wet grinding; wet discharge slurry passes a 1000-mesh screen
- Auto-transformer reduced-voltage start — low inrush current, gentle on the local grid
- Integral or separate frame; well suited to small batches of many different materials
Specifications
TC Series Ceramic Ball Mill
| Model | Shell Size (mm) | Batch Load (t) | Shell Speed (r/min) | Motor Power (kW) | Capacity (t/h) |
|---|---|---|---|---|---|
| 1120 | Φ910 | 0.2 | 35 | 2.2 | 0.2 |
| 1420 | Φ1200 | 0.5 | 31.5 | 4 | 0.5 |
| 1800 | Φ1400 | 1 | 27 | 7.5 | 1 |
| 2100 | Φ1800 | 1.5 | 23 | 11 | 1.5 |
| 2600 | Φ2200 | 3 | 20 | 22 | 3 |
| 3000 | Φ2500 | 5 | 16 | 37 | 5 |
| 3400 | Φ2800 | 8 | 13.8 | 45 | 8 |
| 4000 | Φ3000 | 15 | 13 | 75 | 15 |
| 5000 | Φ3100 | 18 | 12 | 90 | 18 |
| 5800 | Φ3200 | 20 | 13 | 90 | 20 |
Selection note：Parameters above are standard industry figures for reference. Final selection depends on material density, hardness, feed size and target fineness, and is confirmed by a grind test and the contract.
Applications
- Ceramic bodies and glazes
- Quartz, feldspar, kaolin and clay
- Pigments, colourants and electronic ceramics
- Glass raw materials and refractories
- Fine grinding and mixing of chemical and pharmaceutical powders
- Metal powder pre-treatment where iron contamination must be avoided
Options & configuration
- Liner material: alumina ceramic, quartz, silex, rubber or metal
- Media: ceramic balls, silex pebbles or a graded mix
- Discharge: tilt discharge or slurry pipeline
- Variable-frequency drive for shell speed control
- Integral or separate frame, with matching control cabinet
