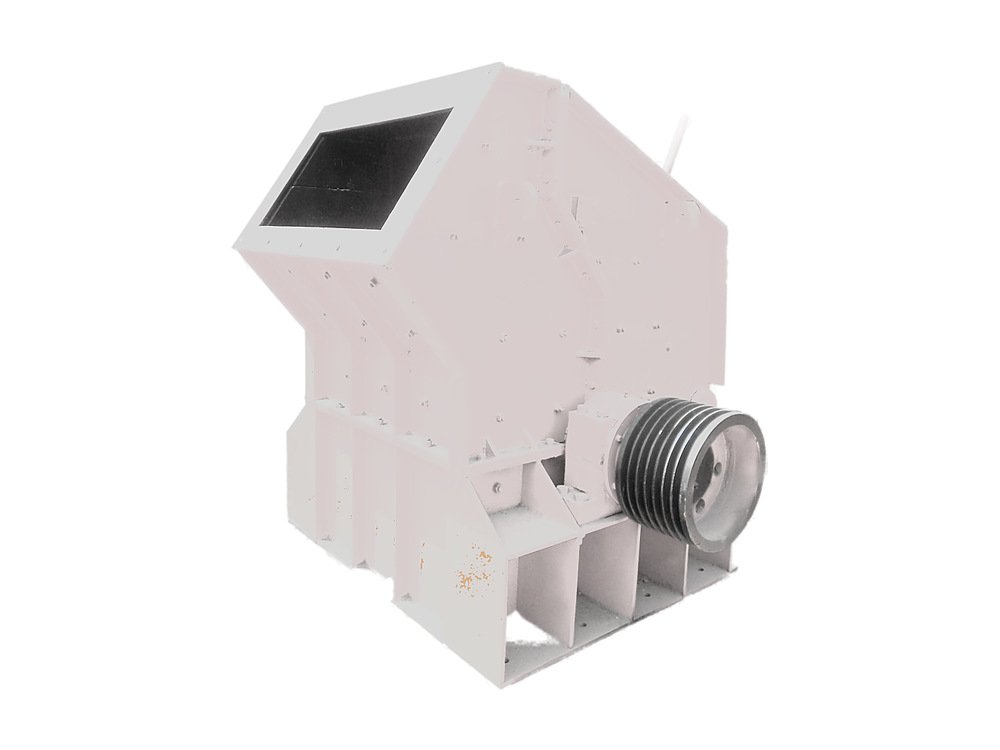

Impact Crusher
PF Series
A secondary crushing machine for aggregate production in hydroelectric, highway and artificial sand-and-gravel projects. A three-cavity crushing zone and a keyless taper-sleeve rotor combined with high-efficiency wear-resistant blow bars reduce large lumps to the required product size.
- Three-cavity crushing zone: high reduction ratio and well-shaped product
- Keyless taper-sleeve rotor connection for reliable torque transmission
- High-efficiency wear-resistant blow bars with plug-in mounting for quick replacement
Key features
- Three-cavity crushing zone: high reduction ratio and well-shaped product
- Keyless taper-sleeve rotor connection for reliable torque transmission
- High-efficiency wear-resistant blow bars with plug-in mounting for quick replacement
- Tilted bearing housing and toothed impact liners keep material flow smooth
- Multi-azimuth frame opening for convenient maintenance
- Screw or hydraulic opening device makes wear-part changes fast
Specifications
Impact Crusher — PF Series
| Type | Specification (mm) | Inlet size (mm) | Max feed size (mm) | Capacity (t/h) | Motor power (kW) | Weight excl. motor (kg) |
|---|---|---|---|---|---|---|
| PF-0607 | φ644×740 | 320×770 | 110 | 10–20 | 30 | 4300 |
| PF-0807 | φ850×700 | 400×730 | 300 | 15–30 | 30–45 | 6500 |
| PF-1008 | φ1000×800 | 400×830 | 300 | 30–60 | 37–55 | 10500 |
| PF-1010 | φ1000×1050 | 400×1080 | 250 | 50–90 | 55–75 | 12500 |
| PF-1210 | φ1250×1050 | 400×1080 | 350 | 70–130 | 90–110 | 15800 |
| PF-1212 | φ1250×1250 | 400×1300 | 350 | 100–150 | 110–132 | 17500 |
| PF-1214 | φ1250×1400 | 400×1430 | 400 | 100–180 | 132–160 | 19800 |
| PF-1315 | φ1320×1500 | 860×1520 | 500 | 160–250 | 180–260 | 24000 |
| PF-1320 | φ1320×2000 | 860×2030 | 500 | 300–350 | 300–375 | 29000 |
Selection note：The tables above list standard PF series parameters. Selection should take material hardness, maximum feed size, target capacity and required product size into account. For an accurate recommendation, please provide your material type and working conditions.
Applications
- Aggregate production for hydroelectric projects
- Highway pavement aggregate
- Artificial sand and gravel production lines
- Construction aggregate production
- Material crushing in metallurgy, chemical and building-materials industries
Options & configuration
- Blow bar material options: high-manganese steel / high-chromium alloy and other wear-resistant grades
- Motor selection within the power range of each model
- Supporting equipment: vibrating feeder, vibrating screen, belt conveyor
- Optional mobile chassis to form a mobile crushing station
