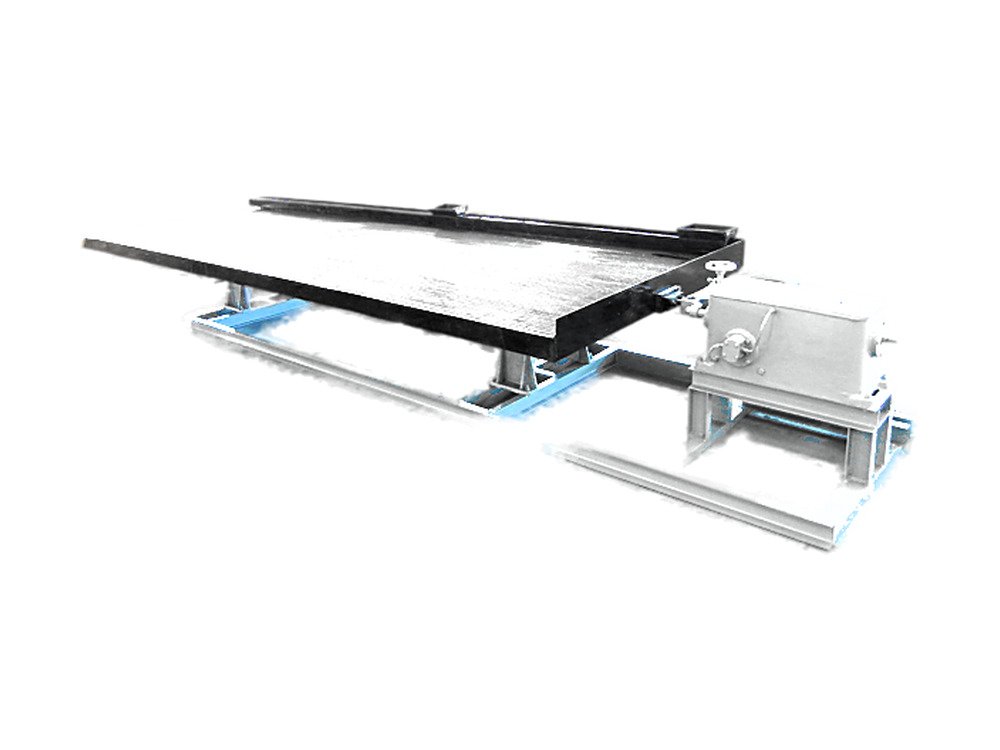

Shaking Table
Grit / Fine Sand / Sludge Table
Used to separate 2–0.02 mm sand and slime fractions of tungsten, tin, niobium, manganese, chromium, titanium, lead, zinc, gold and iron (haematite, brown iron) ores. Three bed-surface types are available — grit (rectangular section), fine sand (zigzag) and slime (triangular).
- Three bed types: grit (rectangular), fine sand (zigzag) and slime (triangular)
- Concentrating area 7.6 m² with a 4450 mm bed length
- Maximum feed size 0.15–2 mm
Key features
- Three bed types: grit (rectangular), fine sand (zigzag) and slime (triangular)
- Concentrating area 7.6 m² with a 4450 mm bed length
- Maximum feed size 0.15–2 mm
- Feed rate 10–60 t/d
- Eccentric-shaft drive for smooth running
- 1.1 kW motor — low energy consumption
Specifications
Shaking Table
| Table type | Length (mm) | Driving part width (mm) | Concentrate part width (mm) | Max feeding size (mm) | Feeding amount (t/d) | Feeding thickness (%) | Journey (mm) | Frequency | Horizontal obliquity (°) | Concentrating area (m²) | Bed section shape | Motor power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grit table | 4450 | 1885 | 1546 | 2 | 30–60 | 25–30 | 16–22 | 45–48 | 2.5–4.5 | 7.6 | Rectangle | 1.1 |
| Fine sand table | 4450 | 1885 | 1546 | 0.5 | 10–20 | 20–25 | 11–16 | 48–53 | 1.5–3.5 | 7.6 | Zigzag | 1.1 |
| Sludge table | 4450 | 1855 | 1546 | 0.15 | 15–25 | 15–25 | 8–16 | 50–57 | 1–2 | 7.6 | Triangle | 1.1 |
Selection note：The table above lists standard parameters for all three bed types. The grit table suits 2–0.5 mm material, the fine sand table 0.5–0.074 mm, and the sludge table 0.074–0.02 mm. Please provide the size distribution and throughput when requesting a selection.
Applications
- Gravity separation of tungsten and tin
- Gold concentrate cleaning
- Tantalum-niobium and manganese-chromium ore separation
- Lead-zinc and ilmenite separation
- Iron ore (haematite, brown iron) separation
Options & configuration
- Bed type selected by material size
- Bed material options: FRP or aluminium-wood construction
- Optional bed covering: rubber or wear-resistant coating
- Multiple units can be arranged as a separation bank
- Supporting equipment: feed launder, concentrate launder, water pump
