Batch Ball Mill

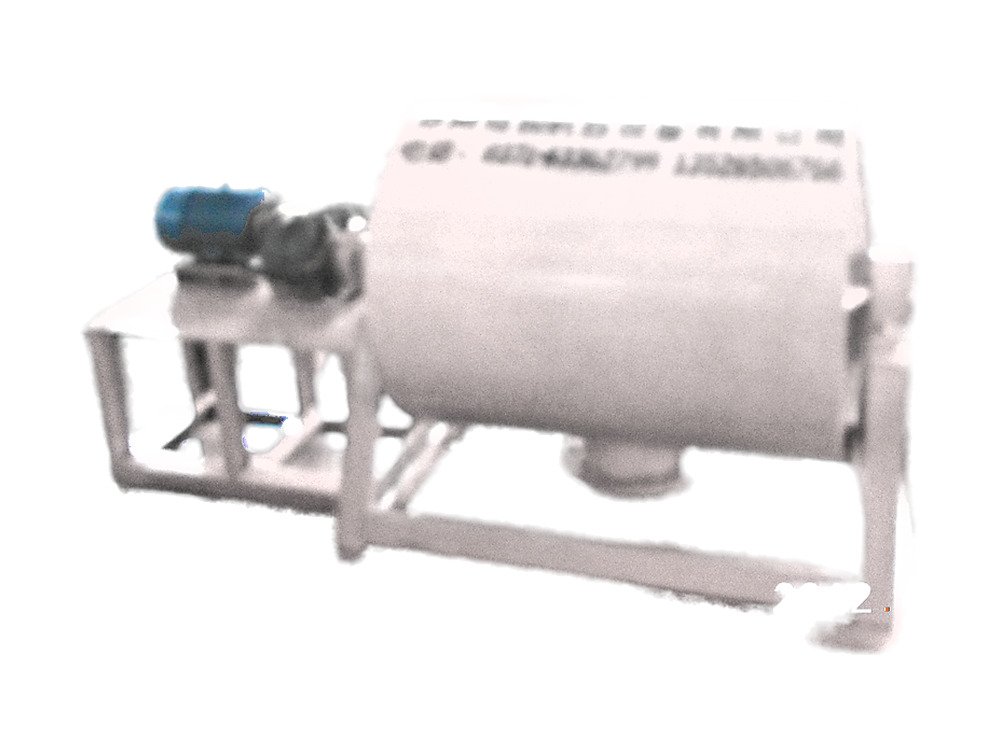

QM Series Batch Ball Mill
A mill that grinds one batch at a time. Loading, grinding and discharging all happen in the same shell with no continuous flow, so the fineness is set directly by grinding time and the mill is easy to clean between materials. Suited to small batches, many different materials, and cases where batch-to-batch fineness consistency matters. Dry or wet.
- Batch operation — fineness set by time, adjustable per batch, repeatable
- Easy to clean between materials, so one mill handles many products
- Dry or wet grinding; wet slurry passes a 1000-mesh screen
Key features
- Batch operation — fineness set by time, adjustable per batch, repeatable
- Easy to clean between materials, so one mill handles many products
- Dry or wet grinding; wet slurry passes a 1000-mesh screen
- Liner options: ceramic, silex, rubber or metal, matched to material and purity
- Auto-transformer reduced-voltage start, low inrush current
- Integral or separate frame — small footprint, low capital cost
Specifications
QM Series Batch Ball Mill
| Model (Dia. × Length, mm) | Batch Load (t) | Shell Speed (r/min) | Motor Power (kW) |
|---|---|---|---|
| 600×700 | 0.05 | 50 | 2.2 |
| 800×600 | 0.075 | 42 | 3 |
| 900×1200 | 0.2 | 38.5 | 5.5 |
| 1300×1500 | 0.5 | 33 | 7.5 |
| 1500×1800 | 1.2 | 28.5 | 11 |
| 1800×2000 | 1.5 | 24 | 15 |
| 2600×2800 | 5 | 16.5 | 37 |
| 3000×3800 | 10 | 14.5 | 57.2 |
| 3200×4600 | 15 | 13.5 | 75 |
Selection note：Parameters above are standard industry figures. Motor power varies with liner material and the material being ground. Final selection depends on density, hardness, batch load and target fineness, and is confirmed in the contract.
Applications
- Fine grinding and mixing of ceramic bodies, feldspar, quartz and clay
- Glass raw materials and refractories
- Small-batch grinding of chemicals, pigments and coatings
- Laboratory and pilot-line sample preparation
- Mixing and grinding of special alloys and electronic materials
Options & configuration
- Liner material: ceramic, silex, rubber or metal
- Media: steel balls, ceramic balls or silex pebbles, per material
- Discharge: tilt discharge or slurry pipeline
- Variable-frequency drive
- Integral or separate frame with matching control cabinet
