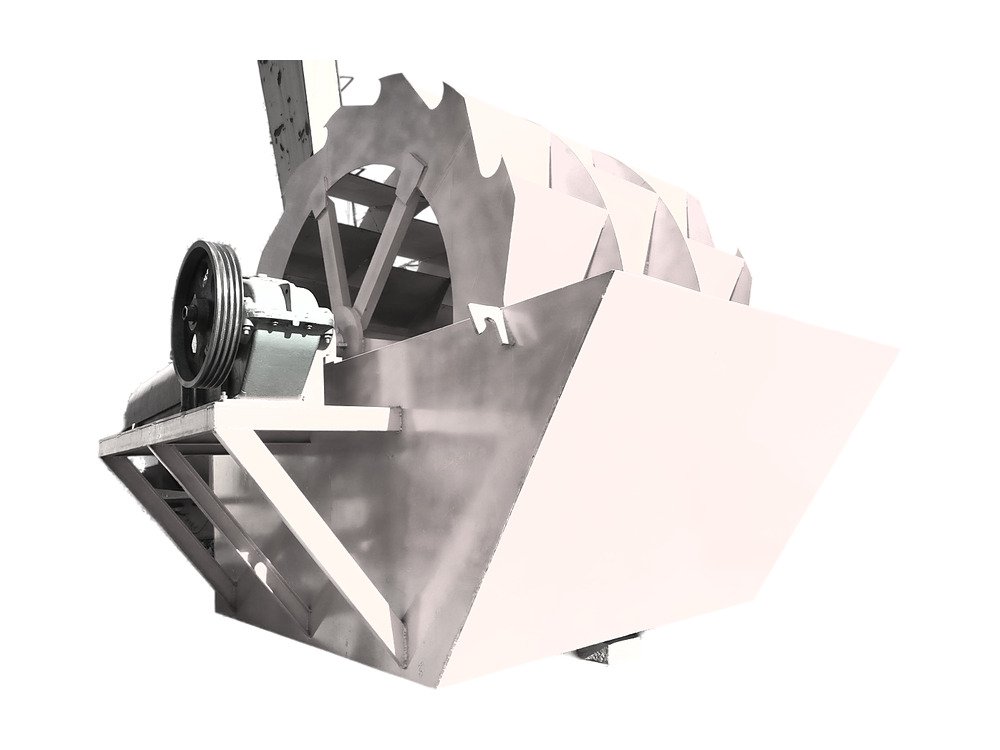

High-Effective Sand Washing Machine
GX Series
A water-based sand washing machine used together with a sand making machine. Mainly used for washing, grading and dewatering of material in sand and gravel plants, mining, building materials, transportation, chemical industry, water utilities and concrete mixing stations.
- Capacities from 8 to 500 t/h across 5 models
- Return sand capacity from 3 to 200 t/h
- Impeller design gives high washing efficiency with low fine-sand loss
Key features
- Capacities from 8 to 500 t/h across 5 models
- Return sand capacity from 3 to 200 t/h
- Impeller design gives high washing efficiency with low fine-sand loss
- Power from 4 to 15 kW — low energy consumption
- Compact structure, easy to install and relocate
- Suited to closed-circuit sand production lines with a sand making machine
Specifications
High-Effective Sand Washing Machine — GX Series
| Model | Capacity (t/h) | Return sand capacity (t/h) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| GX2000 | 8–40 | 3–8 | 4 | 1900 |
| GX2600 | 20–100 | 5–15 | 5.5 | 3800 |
| GX2800 | 50–130 | 8–70 | 7.5 | 4200 |
| GX3200 | 240–300 | 80–130 | 11 | 5600 |
| GX3600 | 280–500 | 100–200 | 15 | 6800 |
Selection note：The table above lists standard GX series parameters. Capacity and return-sand capacity vary with the mud content and feed size of the material. Please provide mud content, feed size and target capacity when requesting a selection.
Applications
- Sand and gravel washing in aggregate plants
- Material grading and dewatering in mining
- Building materials and concrete mixing stations
- Transportation and water-conservancy projects
- Material washing in the chemical industry
Options & configuration
- Model chosen by required capacity (GX2000 to GX3600)
- Motor power fixed per model
- Supporting equipment: sand making machine, vibrating screen, belt conveyor, fine sand recovery unit
- Optional fine-sand recovery device
- Optional mobile mounting chassis
