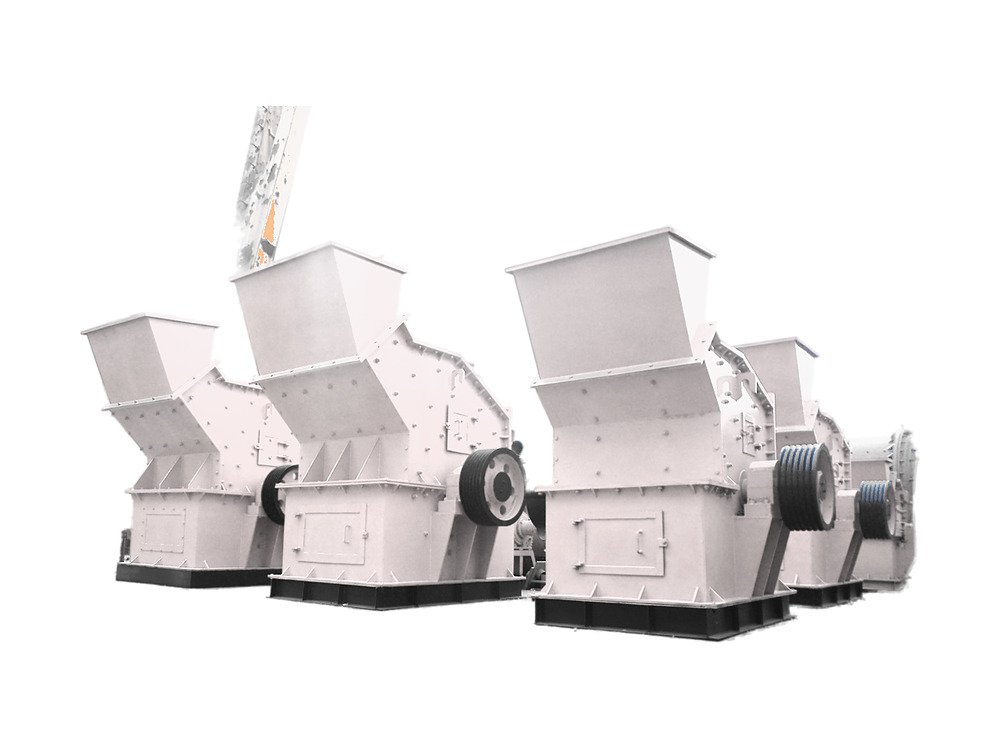

High-Efficiency Fine Impact Crusher
PXJ Series
A high-efficiency fine crusher developed by combining advanced technology with domestic working conditions. It fine-crushes medium-hard solid materials — limestone, gypsum, clinker and mixed materials in the cement industry, and calcium phosphate, dolomite and perlite elsewhere. Widely used in building materials, chemicals, mining and refractory industries.
- Discharge size ≤5 mm — finished in one fine-crushing pass
- Discharge seam width adjustable from 5 to 20 mm
- Capacity quoted separately for cement clinker, limestone and glass sand
Key features
- Discharge size ≤5 mm — finished in one fine-crushing pass
- Discharge seam width adjustable from 5 to 20 mm
- Capacity quoted separately for cement clinker, limestone and glass sand
- Capacities up to 310 t/h
- Wear-resistant rotor and blow-bar design, easy to replace
- 9 models from small to large production lines
Specifications
High-Efficiency Fine Impact Crusher — PXJ Series
| Type | Inlet size (mm) | Max feed size (mm) | Discharge size (mm) | Discharge seam adjustment (mm) | Capacity — cement clinker (t/h) | Capacity — limestone (t/h) | Capacity — glass sand (t/h) | Power (kW) |
|---|---|---|---|---|---|---|---|---|
| 800×400 | 400×230 | 120 | ≤5 | 5–20 | 20–30 | 30–45 | 35–45 | 22–37 |
| 800×600 | 600×230 | 180 | ≤5 | 5–20 | 35–40 | 40–55 | 45–55 | 37–45 |
| 800×800 | 800×230 | 180 | ≤5 | 5–20 | 35–45 | 60–65 | 55–65 | 45–55 |
| 1010×1010 | 1000×330 | 180 | ≤5 | 5–20 | 45–55 | 60–75 | 65–75 | 55–75 |
| 1200×1000 | 1200×330 | 180 | ≤5 | 5–20 | 80–110 | 80–100 | 80–100 | 90–110 |
| 1200×1200 | 1200×420 | 180 | ≤5 | 5–20 | 100–110 | 90–100 | 90–120 | 110–132 |
| 1400×1400 | 1400×420 | 190 | ≤5 | 5–20 | 100–150 | 100–150 | 120–150 | 160 |
| 1600×1600 | 1600×520 | 190 | ≤5 | 5–20 | 170–210 | 190–250 | 190–250 | 250 |
| 1800×1800 | 1800×520 | 190 | ≤5 | 5–20 | 250–270 | 280–310 | 280–310 | 315 |
Selection note：The tables above list standard PXJ series parameters. Capacity differs by material — cement clinker, limestone and glass sand are listed separately. Please provide material type, feed size and target capacity when requesting a selection.
Applications
- Cement industry: fine crushing of limestone, gypsum, clinker and mixed materials
- Calcium phosphate, dolomite and perlite
- Manufactured sand for building materials
- Fine crushing of chemical raw materials
- Mining and refractory materials
Options & configuration
- Motor power matched to each model
- Discharge seam width adjustable from 5 to 20 mm
- Supporting equipment: vibrating feeder, vibrating screen, belt conveyor
- Optional dust-collection connection
- Optional centralized lubrication system
Need help choosing a model?
Tell us the material and the target capacity — we will recommend the model and the supporting equipment that fit.
