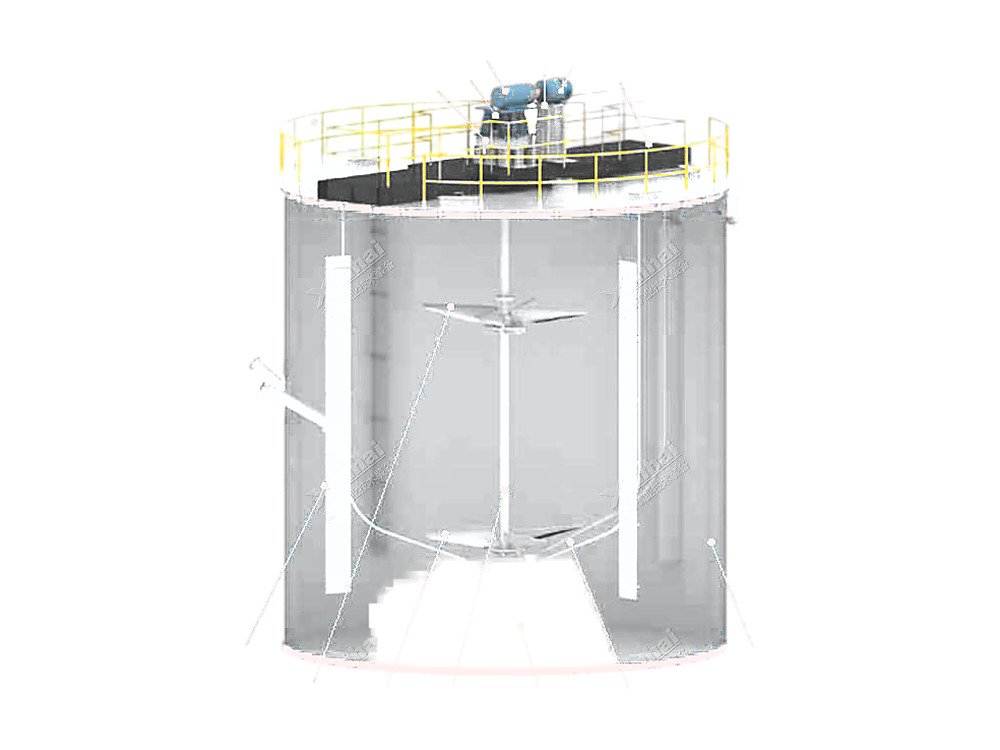

Efficient Concentrator
NZS Series
The concentrator is used for dewatering concentrate and tailings in ore dressing plants, and widely applied to the treatment of slime, waste water and residue in metallurgy, mining, coal, chemical, building-materials and environmental-protection sectors.
- 9 models with pool diameters from 1800 to 20000 mm
- Sedimentation areas from 2.55 to 314 m²
- Rake speeds 0.1–0.5 r/min for smooth low-speed operation
Key features
- 9 models with pool diameters from 1800 to 20000 mm
- Sedimentation areas from 2.55 to 314 m²
- Rake speeds 0.1–0.5 r/min for smooth low-speed operation
- Power 1.1–5.5 kW
- Outputs from 1.3 to 1440 t/d
- Suited to high-volume tailings and waste-water duty
Specifications
Efficient Concentrator — NZS Series
| Model | Pool diameter (mm) | Pool depth (mm) | Sedimentation area (m²) | Rake frame speed (r/min) | Power (kW) | Yield (t/d) |
|---|---|---|---|---|---|---|
| NZS-1 | 1800 | 1800 | 2.55 | 0.5 | 1.1 | 1.3–5.6 |
| NZS-2.5 | 2500 | 1800 | 4.9 | 0.33 | 1.1 | 5–10.8 |
| NZS-3 | 3600 | 1800 | 10.2 | 0.33 | 1.1 | 5–24 |
| NZS-6 | 6000 | 2956 | 28.3 | 0.3 | 1.5 | 14–62 |
| NZS-9 | 9000 | 3000 | 63.5 | 0.25 | 3 | 32–150 |
| NZS-12 | 12000 | 3600 | 113 | 0.19 | 3 | 50–250 |
| NZS-15 | 15000 | 3600 | 177 | 0.1 | 5.5 | 70–350 |
| NZS-18 | 18000 | 4400 | 268 | 0.1 | 5.5 | 100–560 |
| NZS-20 | 20000 | 4400 | 314 | 0.1 | 5.5 | 200–1440 |
Selection note：The table above lists standard NZS parameters. Output varies with settling characteristics, feed density and flocculant regime. Please provide settling test data, feed density and throughput when requesting a selection.
Applications
- Concentrate dewatering in ore dressing plants
- Tailings thickening and water recovery
- Coal slurry water treatment in coal preparation plants
- Waste-water treatment in chemical and building-materials plants
- Sludge thickening in environmental projects
Options & configuration
- Model chosen by sedimentation area and output
- Optional centre drive or peripheral drive
- Pool construction options: concrete or steel structure
- Optional flocculant dosing unit
- Optional automatic rake lifting and overload protection
- Optional overflow weir and underflow pump package
