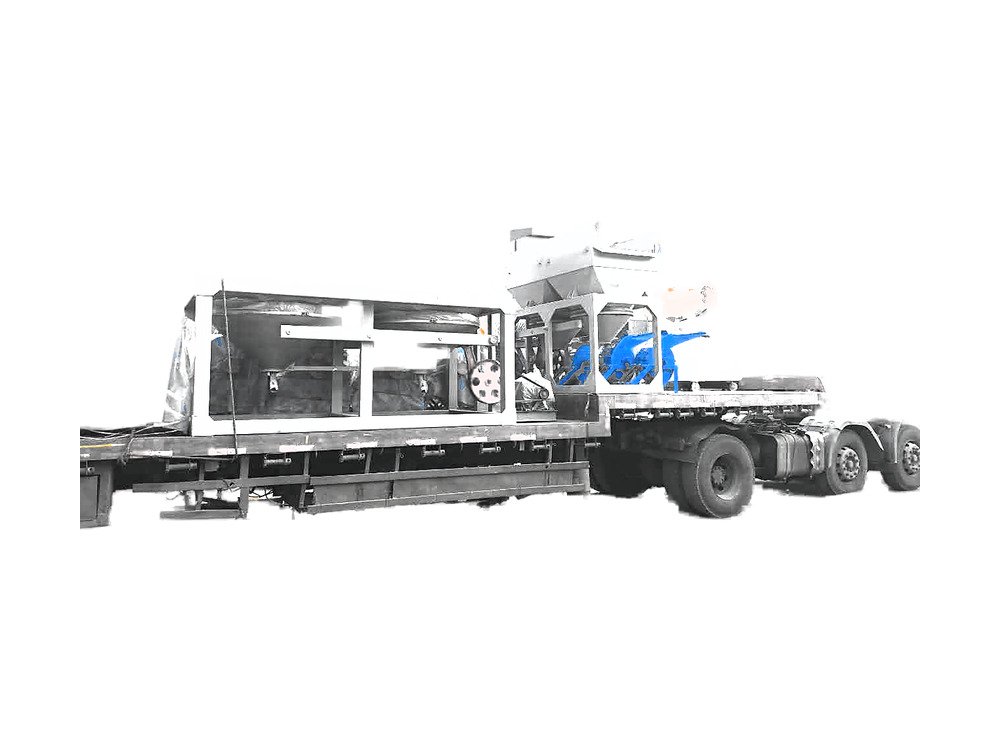

Jigging Machine
LTP / LTA / LTC / 2LTC Series
Suited to material that is not too coarse — generally between 20 and 0.074 mm. Widely used in tin, iron, tungsten, manganese, gold and silver ore dressing. Three types are available: labour type, bottom-drive type and side-drive type.
- Three structures: labour, bottom-drive and side-drive
- Rectangular and trapezoid jigging-chamber sections
- Single-room area 0.135–0.86 m², total area 0.27–5.76 m²
Key features
- Three structures: labour, bottom-drive and side-drive
- Rectangular and trapezoid jigging-chamber sections
- Single-room area 0.135–0.86 m², total area 0.27–5.76 m²
- Maximum feed size 0.3–12 mm
- Capacities from 2 to 20 t/h
- Adjustable stroke and frequency to suit the material
Specifications
Jigging Machine
| Type | Model | Chamber section | L×W (mm) | Single room (m²) | Rows | Rooms | Total area (m²) | Stroke coefficient | Stroke (mm) | Times (min) | Max feed size (mm) | Capacity (t/h) | Water consumption (t/h) | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Labour type | LTP-34/2 | Rectangle | 450×300 | 0.135 | Single | 2 | 0.27 | 0.58 | 0–25 | 320–420 | 12 | 2–6 | 4–10 | 1.1 |
| Bottom-drive | LTA-1010/2 | Rectangle | 1000×1000 | 1.0 | Single | 2 | 2.0 | 0.5 | 0–25 | 250–350 | 5 | 5–15 | 10–20 | 2.2 |
| Side-drive | LTC-69/2 | Rectangle | 900×600 | 0.54 | Single | 2 | 1.08 | 0.56 | 0–50 | 220–350 | 12 | 6–9 | 40–60 | 1.5 |
| Side-drive | 2LTC-366/8T | Trapezoid | 600×(300–600) | 0.2–0.34 | Double | 8 | 2.16 | 0.68–0.41 | 0–50 | 120–300 | 5 | 3–6 | 20–40 | 1.1×2 |
| Side-drive | 2LTC-6109/8T | Trapezoid | 900×(600–1000) | 0.58–0.86 | Double | 8 | 5.76 | 0.52–0.35 | 0–50 | 120–300 | 5 | 10–20 | 80–120 | 2.2×2 |
Selection note：The table above lists standard LTP / LTA / LTC / 2LTC parameters. Trapezoid-section models are double-row, with power doubled. Capacity varies with material size, specific gravity and stroke/frequency settings. Please provide material type, size and throughput when requesting a selection.
Applications
- Gravity separation of tin and tungsten
- Iron and manganese ore beneficiation
- Gold and silver roughing
- Pre-concentration of placer and vein ores
- Tailings retreatment
Options & configuration
- Type options: labour / bottom-drive / side-drive
- Chamber section options: rectangular or trapezoid
- Single-row or double-row configuration
- Adjustable stroke and frequency
- Supporting equipment: feeder, screen plate, water pump
- Optional automatic discharge control
